Typical Configurations
- Pi filter circuit topology
- Capacitive and inductive elements selected to requirement
- Application-specific voltage and current ratings
- Custom shell styles and termination options
Request a Quote ↗← Filtered connector technologies
TUBE-BASED HIGH-ATTENUATION FILTERING

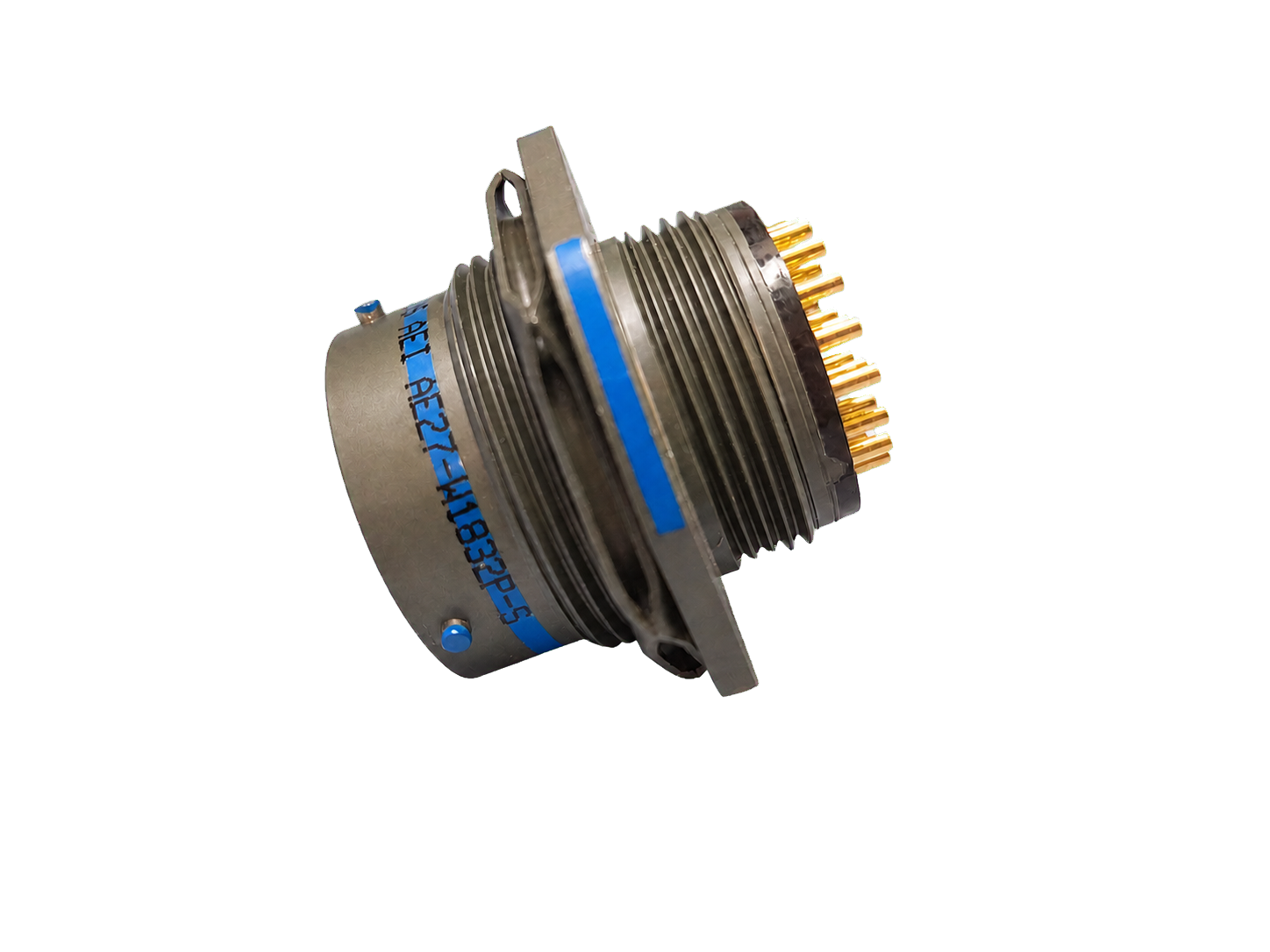

Pi Tube Filter Connectors.
Tubular capacitive and inductive elements provide broadband Pi filtering for demanding power and signal interfaces.
Request a custom filtered-connector design
ENGINEERED TO REQUIREMENTTECHNOLOGY OVERVIEW
Filtering matched
to the application.
Pi tube filter connectors combine tubular capacitive elements with inductive components in a Pi configuration to deliver strong broadband EMI/RFI attenuation. Electrical values and mechanical construction are selected around the application’s voltage, current, frequency, packaging, and program requirements.
Applications
- Sensitive avionics and control electronics
- High-noise electrical environments
- Communications and electronic warfare platforms
- Mission-critical power and signal interfaces
Key Advantages
- High-attenuation tube-based Pi performance
- Broadband EMI/RFI suppression
- Engineered around application-specific requirements
Compare Filtered Connector Options
Review planar arrays, Pi tubes, and chip capacitors across performance, packaging, cost, and delivery.
